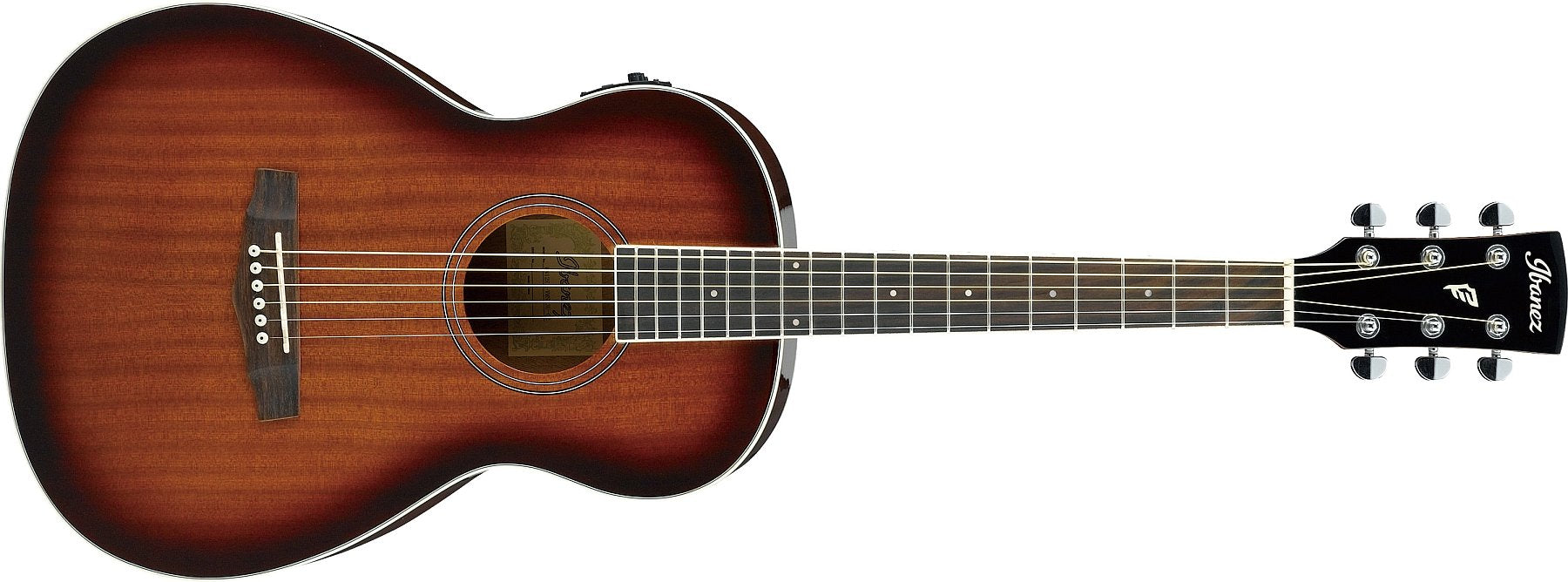

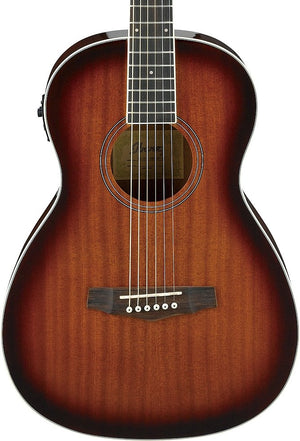

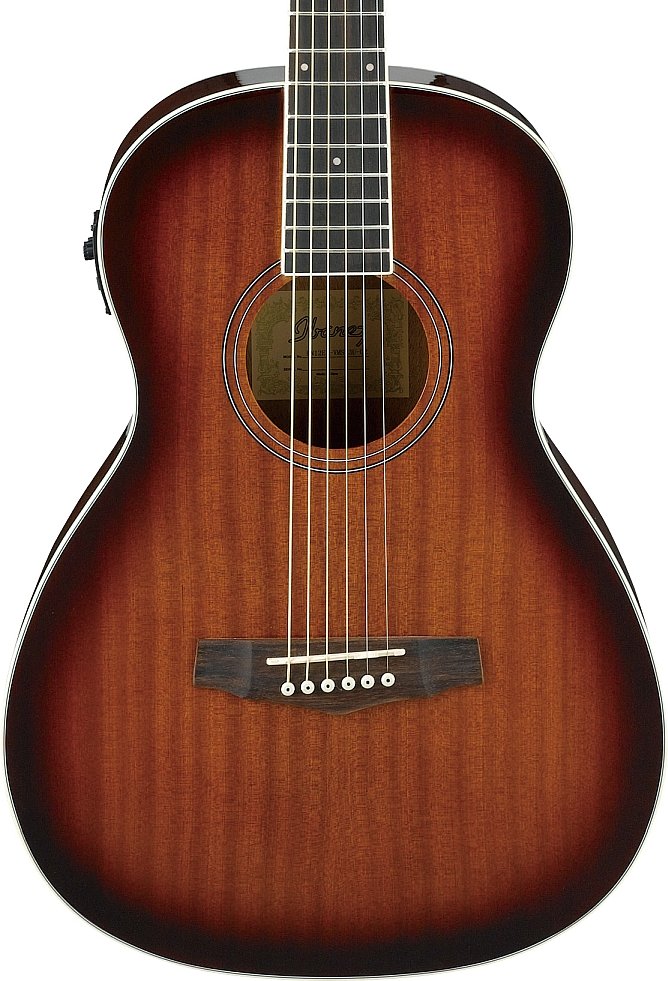

Ibanez PN12EVMS Performance Series Grand Concert Acoustic Electric Guitar Vintage Mahogany Burst

The PN12EVMS from Ibanez features a Vintage Mahogany Sunburst finish and Nandu Wood bridge and fretboard for a unique look and feel.

Ibanez AEQ-2T preamp w/Onboard tuner
AEQ-2T preamp is specifically-designed to adjust the frequencies of a bass and treble, and allows operation of the built-in tuner without the instrument being plugged in.

Nyatoh neck
The Nyatoh neck provides a rich mid-low end.

Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.

PREAMP

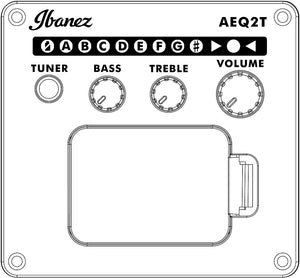

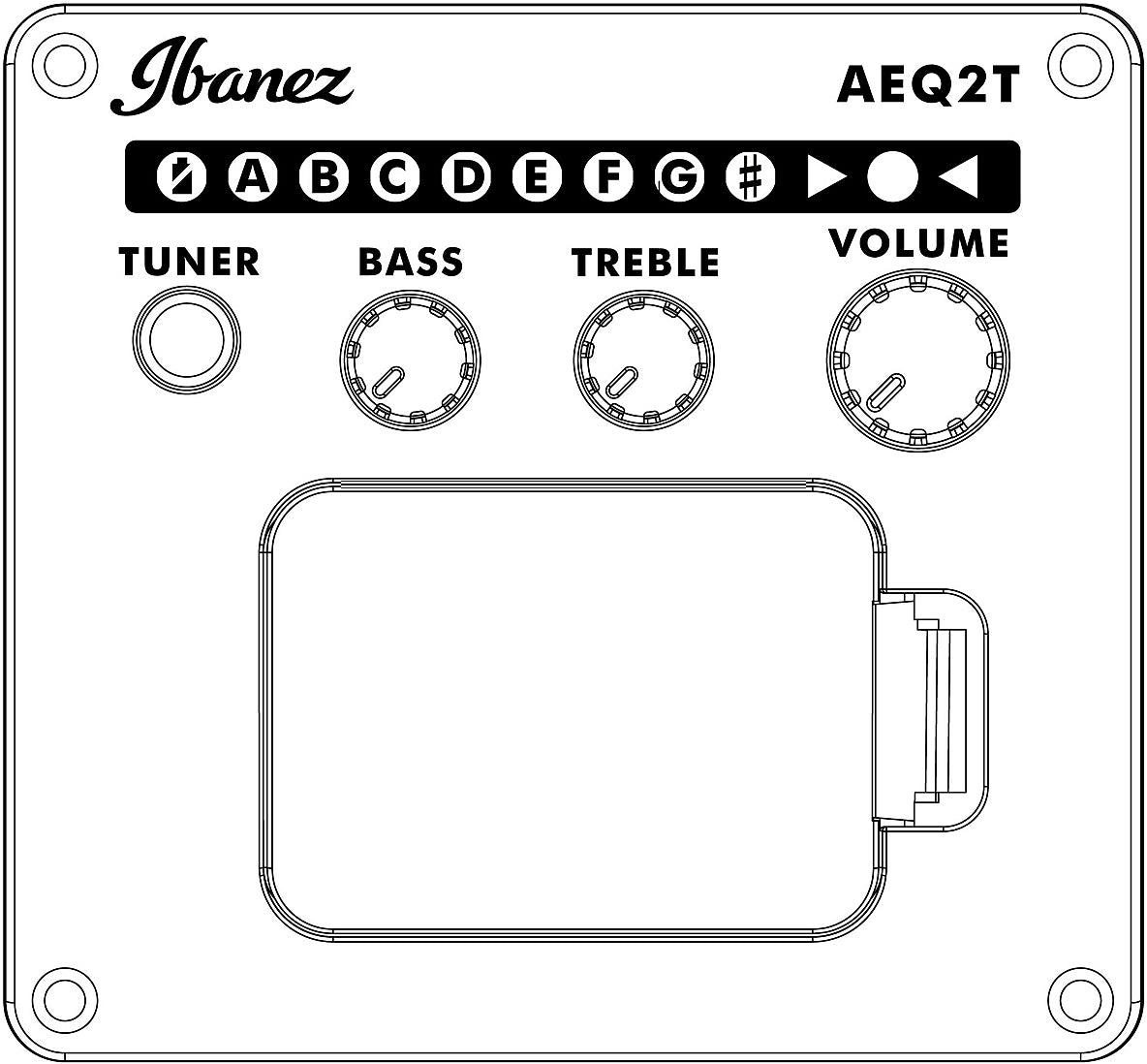

The neck side of the preamp is the top of the control panel. There is one button and three knobs along the top of the control panel. The button furthest to the left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.

SPECS

• body shape: Parlor body
• top: Sapele top
• back & sides: Nyatoh back & Nyatoh sides
• neck: PN Nyatoh neck
• fretboard: Nandu Wood fretboard
• bridge: Nandu Wood bridge
• inlay: White dot inlay
• soundhole rosette: Black & White multi: Chrome Die-cast tuners
• number of frets: 18
• bridge pins: Ibanez Advantage™
• strings: Ibanez IACS6C
• string gauge: .012/.016/.024/.032/.042/.053
• string space: 11mm
• factory tuning: 1E,2B,3G,4D,5A,6E
• pickup: Ibanez Undersaddle
• preamp: Ibanez AEQ-2T preamp w/Onboard tuner
• output jack: 1/4" output

BODY DIMENSIONS

• a : Length 19 1/2"
• b : Width 14 3/8"
• c : Max Depth 4 "

NECK DIMENSIONS

• Scale : 620mm
• a : Width 42mm at NUT
• b : Width 54mm at 14F
• c : Thickness 20mm at 1F
• d : Thickness 21mm at 7F
• Radius : 250mmR
